Gantry Moving Desktop Aluminum CNC Router Machine with DSP A11E Offline Control
Application
Mould of Copper, Iron, aluminum, stainless steel. Shoe mould, mobile mould, Red Copper electrode, Building model, name tag, copper stamp.
Features
1. Cast Iron structure with vibration Temper aging treatment ensures no deformation for long time.
2. Aluminum T slot working table with gantry moving type. Durable without deformation enable positioning more precision.
3. Equipped with Hiwin Taiwan linear square guide rail for XYZ-axis, effectively improved the precision.
4. Three axis with precision ball screw transmission ensure the engraving speed and accuracy.
5. High variable speed 1.5W water cooling spindle, big torque, longer life, strong cutting ability and continuous work for long time.
5.Powerful stepper motor and driver for XYZA-axis, compared with the stepper motor, ensuring high speed and precision working.
6. Rationalized placement of the electronic parts. Optimized heat dissipation effect. Adopt high quality electronic parts, minimizing fault rate.
7. Stainless steel water slot cooling system, ensuring the cooling for the metal & hard materials.
8. DSP A11E offline control system with USB interface which is completely off from Computer. More Humanized design with Simple and Convenient Handle type operation.With pre-calculation rule, fully excavating potentialities of motors. Enable high processing speed, synchronization of Curve and straight line, more perfect curve working and Spindle startup and stop automatically.
9. With the function of break-point memory, power failure resuming and automatic home/origin correction function.Effectively ensure long time working precision.
10. Working Pause, Speed adjust, Working depth adjust at any time while working. Preview the 2D&3D working result With simulation function. Variable Speed is suitable for various materials and industry.
11. Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.
Technical Parameters
| Effective working area | 600(X)mm*600Y)mm*200(Z)mm |
| Materials | Cast iron machine bed |
| Working table | Aluminum alloy T slot |
| Moving type | Gantry moving |
| Guide rail | Linear square guide rail ( Hiwin, Taiwan) |
| Transmission | Lead ball screw for XYZ-axis |
| Driving mode | Stepper motor and driver for XYZA-axis |
| Spindle motor | 1.5kw water cooling |
| Spindle speed | 0-24000rpm |
| Inverter | Sunfar, Taiwan |
| Voltage | AC 220V+ 10%, 50/60Hz, single phase |
| Traveling speed | >8000mm/min |
| Engraving speed | >6000mm/min |
| Machine accuracy | 0.03mm |
| Control system | DSP offline control system, A11E |
| Suitable software | Artcam, Type3, Ucancam V9,etc |
| Carving Instructions | G code *Uoo *mmg *plt HPGL |
| Running environment temperature | 0-45 ℃ |
| Relative humidity | 30%-75% |
| Cooling system | Stainless steel water slot cooling |
| Tool calibration | Auto |
| Certificate | CE |
Reference Parts Photos
Control cabinet & DSP A11E offline control
Accessories

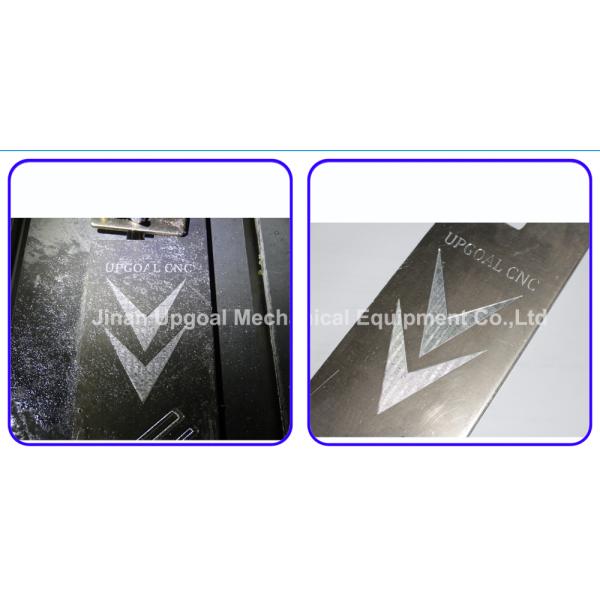

Reference Sample Photos
Reference Working Videos
https://www.youtube.com/watch?v=rk7m2kee5TM&t=4s
For more information, just feel free to contact us!
